Advanced X-ray generator designed for high-precision dental imaging and streamlined workflow integration.
Advanced Technology for Accurate Diagnostics
The intraoral X-ray unit with easy positioning and handling — ideal for any dental clinic.
Planmeca ProX is designed to make intraoral radiography easier and safer. It ensures fast and accurate positioning, instant image capture, and exceptionally high-quality radiographs with outstanding resolution.
Perfect results. Instantly.
Efficiency and Reliability in Everyday Practice

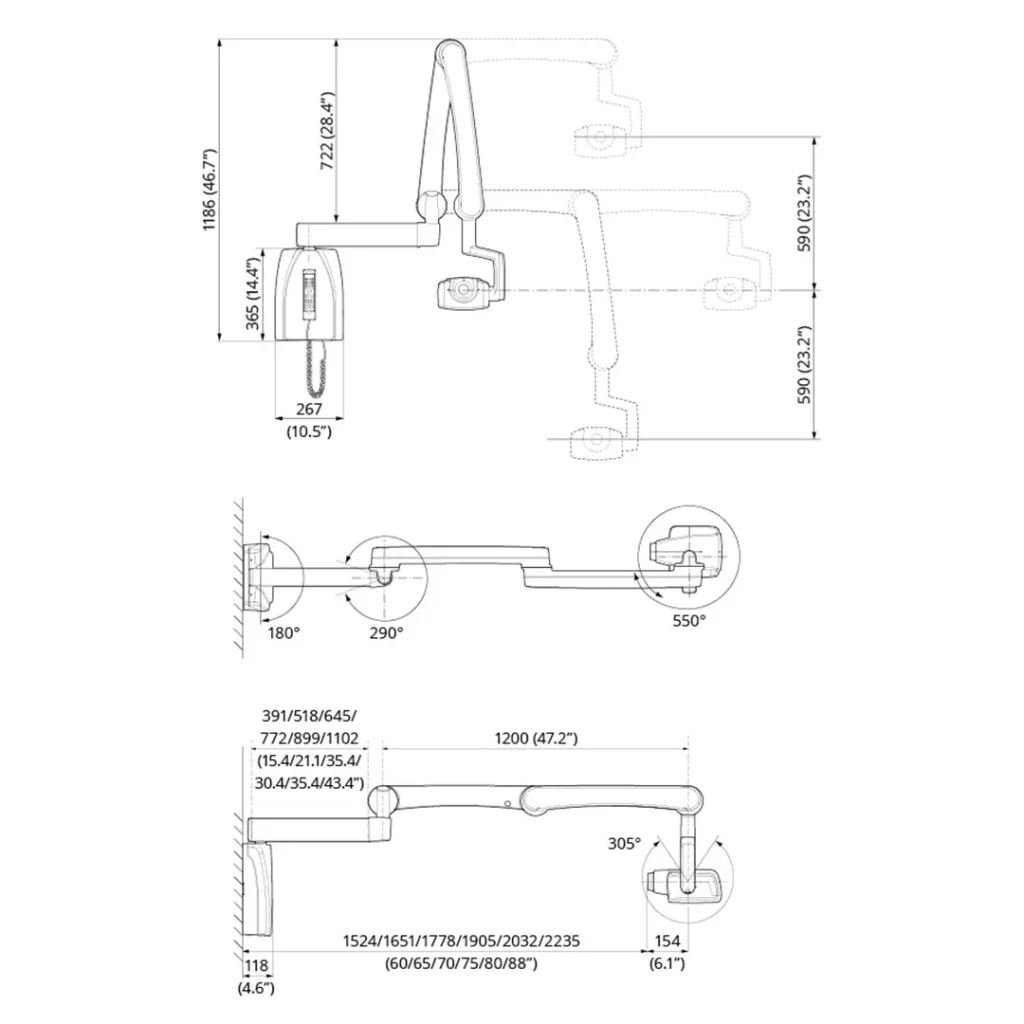

The Planmeca ProX intraoral X-ray unit offers versatile installation options — it can be wall-mounted in various positions, placed on a mobile cart, or integrated into one of the Planmeca dental units.
It supports traditional film, digital sensors (Planmeca ProSensor), or imaging plates used with a phosphor plate scanner (Planmeca ProScanner 2.0).

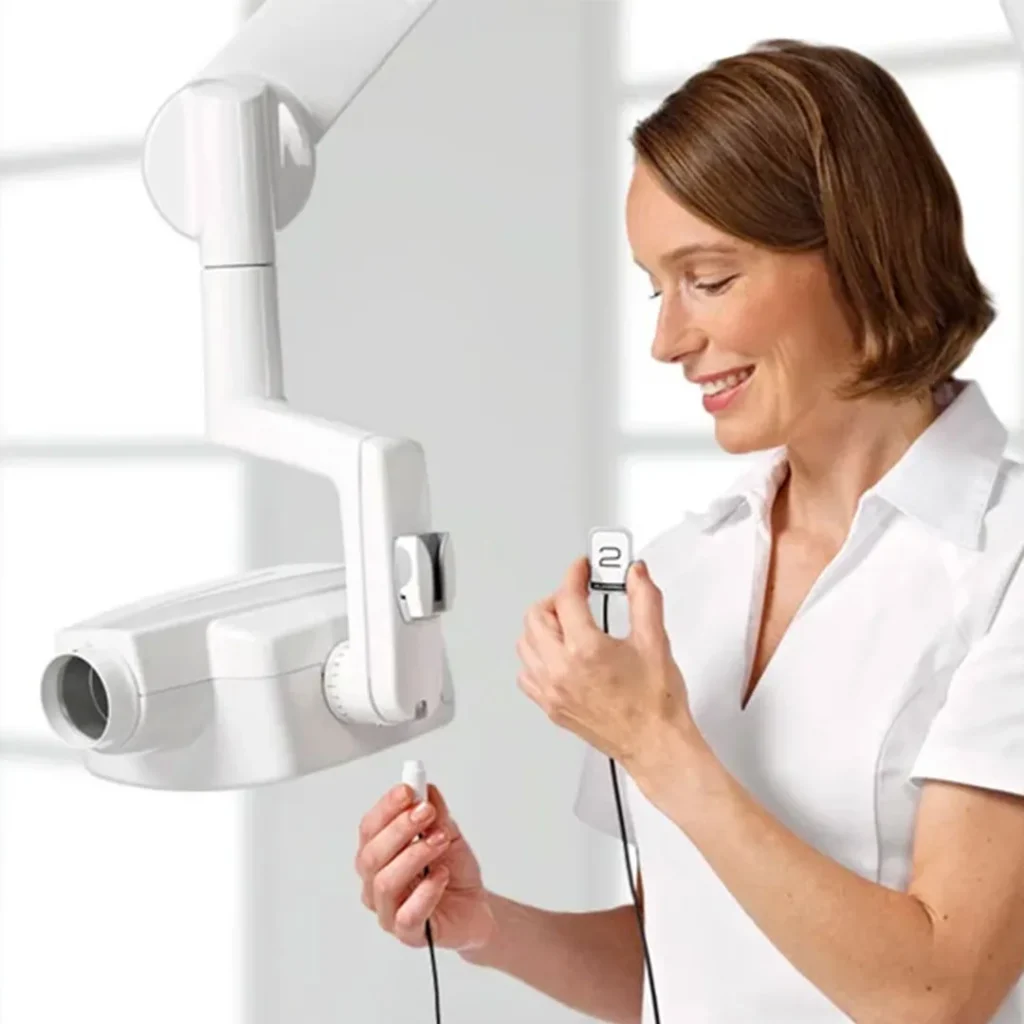

Designed for fast and effortless use, it features a practical layout, pre-programmed settings for different types of radiographs and anatomical regions, and a remote control for triggering and adjustments from a distance.
The exposure parameters of the Planmeca ProX can be adjusted manually or automatically, depending on the selected exposure program.
Planmeca ProX – Technical Specifications
Generator: Constant potential, microprocessor-controlled, operating frequency 66 kHz
X-ray Tube: Toshiba D-041SB
Focal Spot Size: 0.4 mm (per IEC 60336)
Cone Diameter: 60 mm (2.36 in), rectangular field 33 x 43 mm (1.30 x 1.69 in)
Maximum Radiation Field: Symmetrical Ø60 mm at SSD 200 mm, Ø60 mm at SSD 300 mm (per IEC 806)
Total Filtration: Min. 2.5 mm Al equivalent at 70 kV (per IEC 60522)
Inherent Filtration: 1 mm Al equivalent at 70 kV (per IEC 60522)
Anode Voltage: 60, 63, 66, 70 kV ±2 kV
Tube Current: 8, 7, 6, 5, 4, 3, 2 mA ±(5% + 0.2 mA)
Exposure Times: 0.01–2 sec ±(5% + 0.001 sec), 24 steps
SSD (Source-to-Skin Distance): Standard/Long 200 mm (8 in) / 300 mm (12 in)
Line Voltage: 100 V~ / 110–115 V~ / 220–240 V~, 50/60 Hz
Duty Cycle: 1:30, automatic control
Electrical Classification: Class I, Type B
Total Weight: 29 kg (64 lbs)
Tube head with standard cone: 4.2 kg (9.3 lbs)
Tube head with long cone: 4.5 kg (10 lbs)
Color: White (RAL 9016)
